Removal Procedure

4SD

1.Drill the spot welds in the 20 locations in area A shown in the figure.

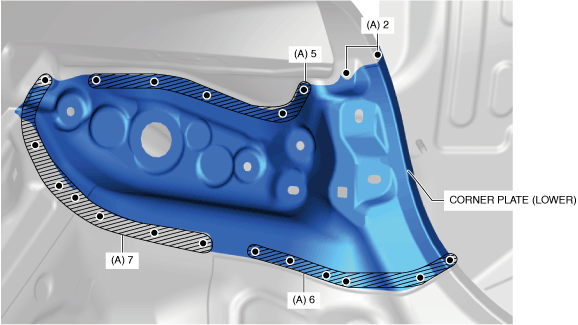

am3zzb00000459

2.Remove the corner plate (lower).

3.Drill the spot welds in the 6 locations in area B shown in the figure.

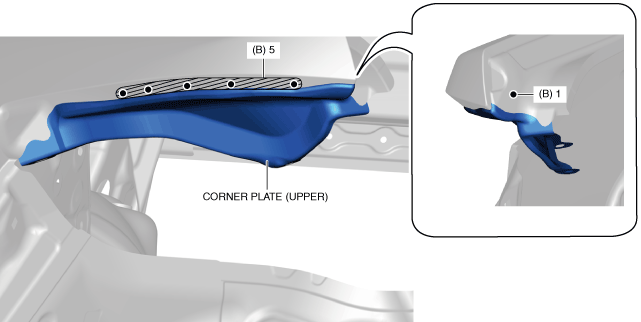

am3zzb00000460

4.Remove the corner plate (upper).

5HB

1.Drill the spot welds in the 17 locations in area A shown in the figure.

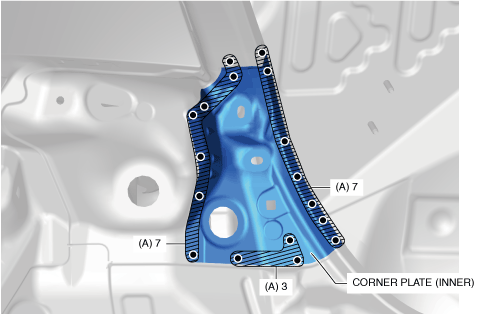

am3zzb00000581

2.Remove the corner plate (inner).

3.Drill the spot welds in the 12 locations in area B shown in the figure.

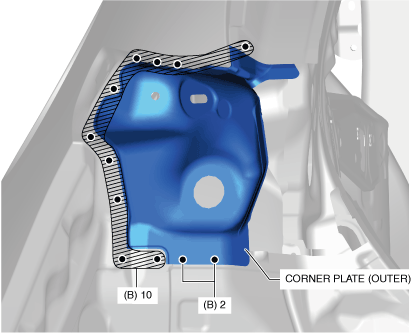

am3zzb00000582

4.Remove the corner plate (outer).
