REMOTE TRANSMITTER [(US)]

REMOTE TRANSMITTER [(US)]

SM2565488

id0914001117x1



Purpose

• When the lock button/unlock button of the remote transmitter is pressed, ID data and button operation information are transmitted to the keyless receiver.
• When the request signal is received, ID data is sent to the keyless receiver.



Function

• When the remote transmitter sends ID data and button operation, the operation indicator light illuminates.
• To lock the doors, fuel-filler lid and liftgate, press the lock button and the hazard warning lights will flash once.

Note
• A beep sound will be heard once.(With the advanced keyless function)
• To confirm that all the doors, fuel-filler lid and liftgate have been locked, press the lock button again within 5 seconds. If they are closed and locked, the horn will sound.
• To unlock the driver’s door and fuel-filler lid, press the unlock button and the hazard warning lights will flash twice.

Note
• A beep sound will be heard twice.(With the advanced keyless function)
• To unlock the other doors and liftgate, press the unlock button again within 5 seconds and two more beep sounds will be heard.
• To open the trunk lid, press and hold the trunk lid open button until the trunk lid opens.(4SD)
• To activate the vehicle’s alarm, press and hold the panic button.
• A power saving function has been adopted in which the battery power consumption of the remote transmitter can be suppressed by turning off the advanced keyless entry *1 and push button start system functions.
Note
• The panic button will work whether any door or the liftgate/trunk lid is open or closed.
• Pressing the panic button for 1 second or more will trigger the alarm for approx. 2 minutes and 30 seconds, and the following will occur.
― The horn sounds intermittently.
― The hazard warning lights flash.
― The alarm stops by pressing any button on the key.
Note
• After you have turned on the power saving function according to the following procedure, the hazard warning lights and sound operate *1 one time.
― Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.
― Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).
― Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.
• After you have turned off the power saving function according to the following procedure, the hazard warning lights and sound operate *1 one time.
― Press any of the buttons on the transmitter to make sure that the operation indicator light does not turn on/flash.
― Press the lock button on the transmitter 4 times within 3 seconds to turn on the operation indicator light.
― Press the lock button continuously for 1.5 seconds or longer while the operation indicator light turns on (for 5 seconds).
*1:With the advanced keyless function

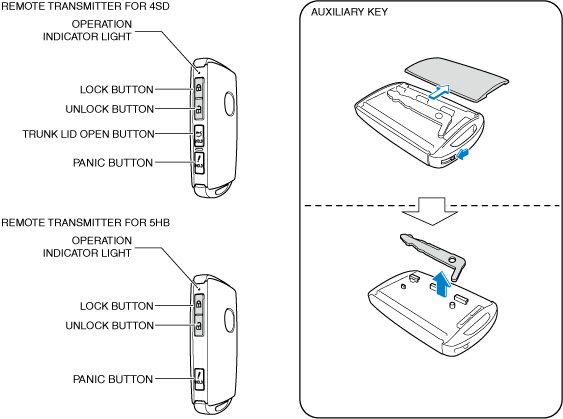

Construction

• The remote transmitter is built into the operation indicator light.
• The remote transmitter secures specific electronic codes (key ID number) built into the electronic communication device (transponder).
• In case the transmitter is inoperable due to battery depletion, the doors can be locked/unlocked using the auxiliary key.
am3zzn00010258



Operation

• When the remote transmitter button is pressed, ID data and button operation information are transmitted to the keyless receiver using an electromagnetic wave.
• When the request signal is received from the LF antenna (125kHz), ID data is sent to the keyless receiver using an electromagnetic wave.
