Installation Procedure

1.When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.Drill holes for the plug welding before installing the new parts.

3.After temporarily installing new parts, make sure the related parts fit properly.

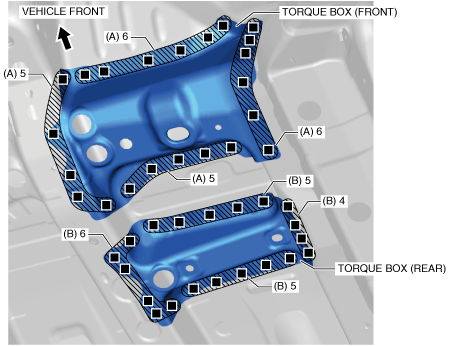

4.Plug welds in the 22 locations in area A shown in the figure and install the torque box (front).

5.Plug welds in the 20 locations in area B shown in the figure and install the torque box (rear).
