| Inspect ignition coil
assembly and Perform spark test |
| 1. |
Check for DTCs.
| •
|
If a DTC is present, perform
troubleshooting in accordance with the procedure for
that DTC. (Refer to DTC
guide) | | |
| 2. |
Check if sparks occur.
| (1) |
Remove the engine
cover. |
| (2) |
Remove the cylinder head center
cover. |
| (3) |
Remove the ignition
coils. |
| (4) |
Using a spark plug wrench, remove the
spark plugs. |
| (5) |
Disconnect the 4 injector
connectors. |
| (6) |
Ground the spark plug to the engine.
|
| (7) |
Check if sparks occur at each spark plug
while engine is being
cranked. |
| •
|
Do not crank the engine for more
then 5 seonds.
| | |
| 3. |

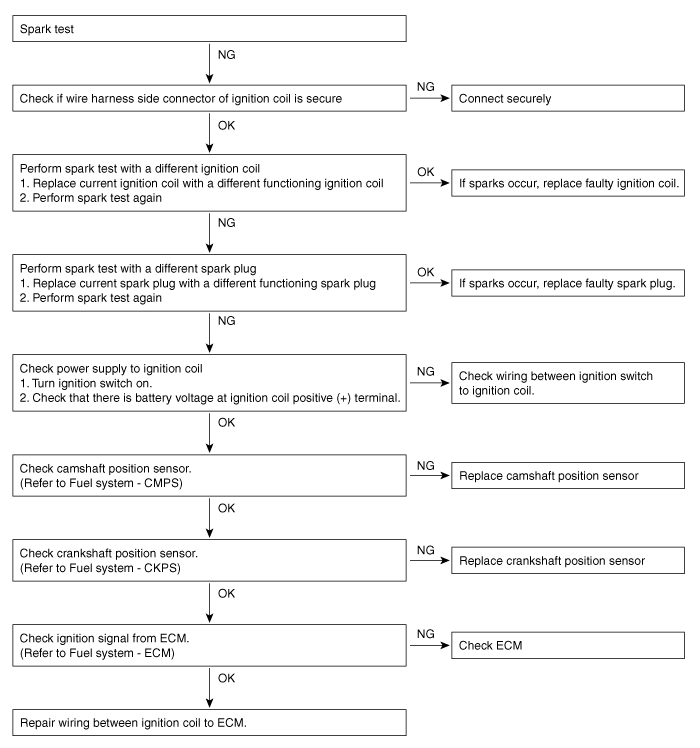

If sparks do not occur, perform the following
test.
|
| 4. |
Using a spark plug wrench, install spark
plugs. |
| 5. |
Install the ignition coils.
|
| 6. |
Install the cylinder head center cover and the
engine
cover. | |
