REAR STABILIZER CONTROL LINK INSPECTION

1. Remove the rear stabilizer control link. (See REAR STABILIZER REMOVAL/INSTALLATION.)

2. Inspect the rear stabilizer control link for bends or damage.

3. Rotate and shake the rear stabilizer control link ball joint 10 times.

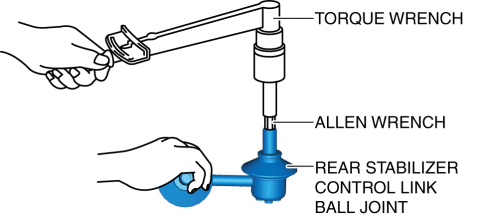

4. Measure the rear stabilizer control link ball joint rotational torque using an Allen wrench and a torque wrench.

    Rear stabilizer control link ball joint rotational torque

  • 0.8—3.5 N·m {8.2—35 kgf·cm, 7.1—30 in·lbf}
