FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]

< Previous Next >

2016 – MX-5 – Body and Accessories

FRONT FENDER JUNCTION REMOVAL [PANEL REPLACEMENT]

Symbol Marks

Removal Procedure

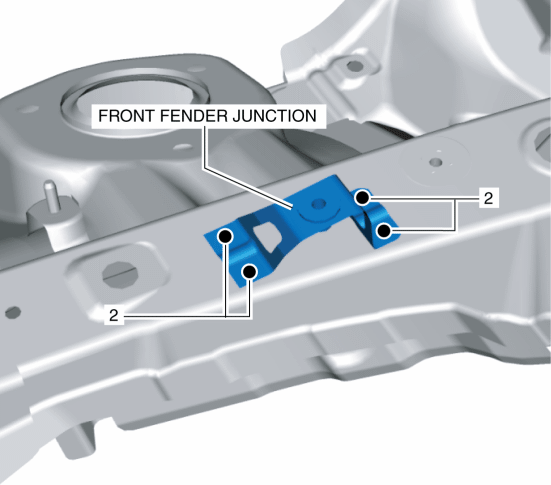

1. Drill the 4 locations indicated shown in the figure.

NOTE:

  • When drilling the 4 locations indicated shown in the figure, do not drill a hole all the way through or there could be a problem when installing the new part.

2. Remove the front fender junction.
